Alpha Advanced Line Gearbox

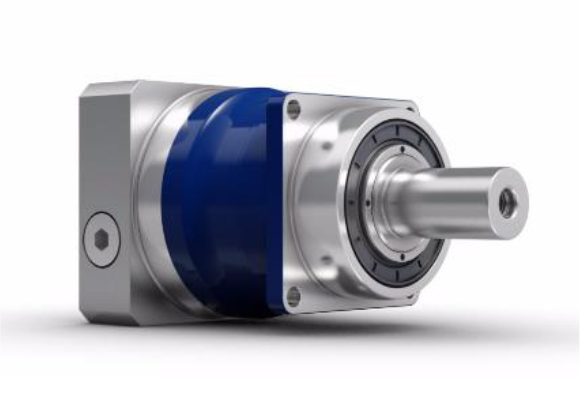

SP⁺

a. GB type: Inline helical planetary
b. Ratio: 3 – 100
c. Max. Torque: up to 5700 Nm
d. Max. backlash: < 1 arcmin
e. Versions: Standard / High Speed / Food grade lubrication / corrosion resistance

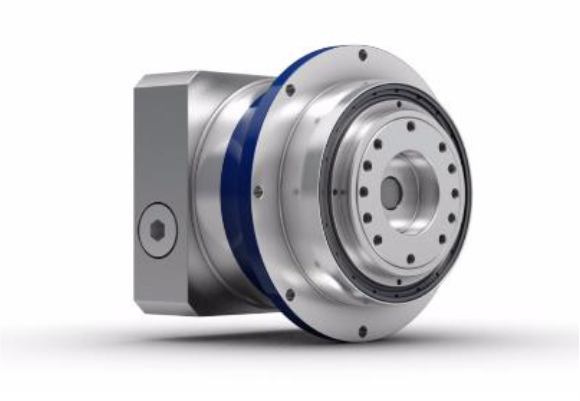

TP⁺

a. GB type: Inline helical planetary
b. Ratio: 4 – 100(MF) & 22 – 302.5(MA)
c. Max. Torque: up to 40,000 Nm
d. Max. backlash: < 1 arcmin
e. Versions: Standard / High torque / Food grade lubrication / corrosion resistance

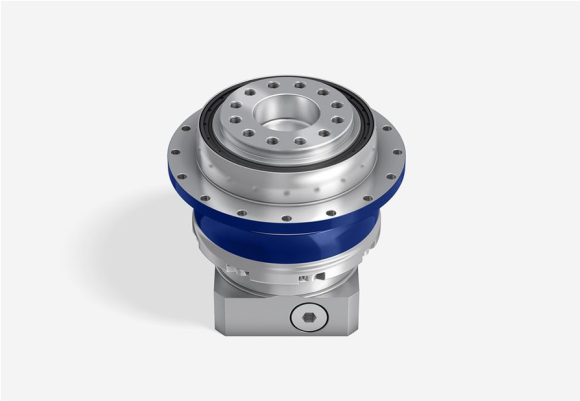

DP⁺

a. GB type: Inline helical Planetary
b. Ratio: 16 – 55
c. Max. Torque: up to 660 Nm
d. Max. backlash: < 1 arcmin
e. Versions: Standard / high Torque

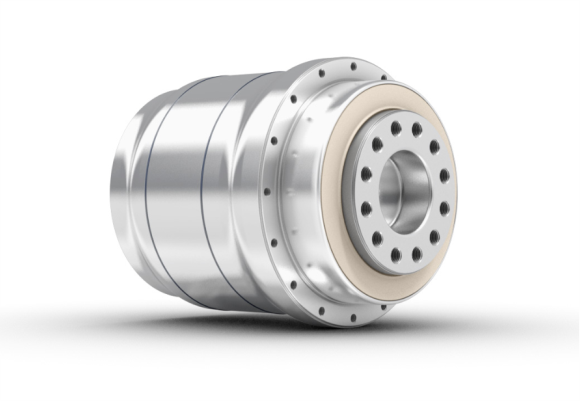

HDP⁺

a. GB type: Inline helical planetary
b. Ratio: 22 – 55
c. Max. Torque: up to 1122 Nm
d. Max. backlash: < 1 arcmin
e. Versions: Standard / High torque / hygienic design

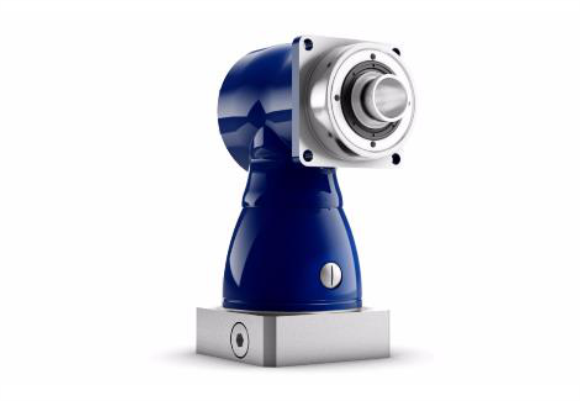

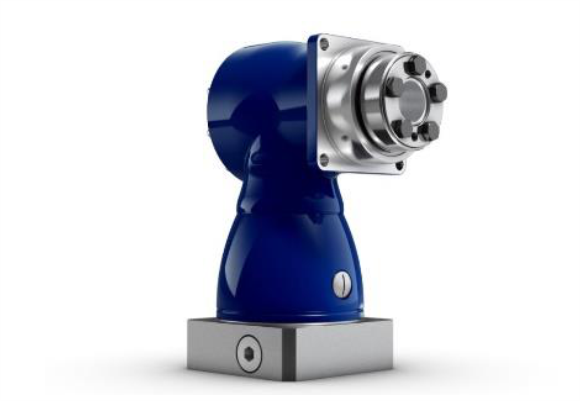

HG⁺

a. GB type: Right angle hypoid
b. Ratio: 3 – 100
c. Max. Torque: up to 768 Nm
d. Max. backlash: < 4 arcmin
e. Versions: Standard / Corrosion resistance / Food grade lubrication

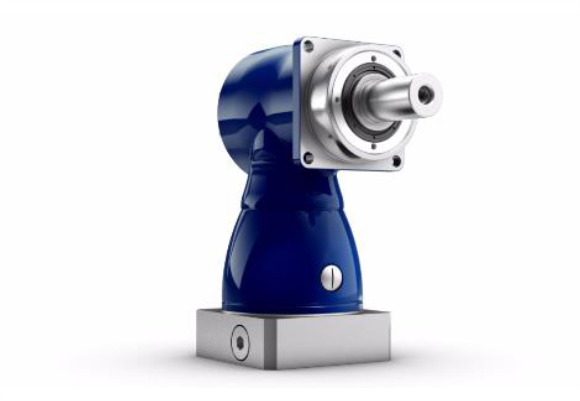

SK⁺

a. GB type: Right angle Hypoid
b. Ratio: 3 – 100
c. Max. Torque: up to 768 Nm
d. Max. backlash: < 4 arcmin
e. Versions: Standard / food grade lubrication

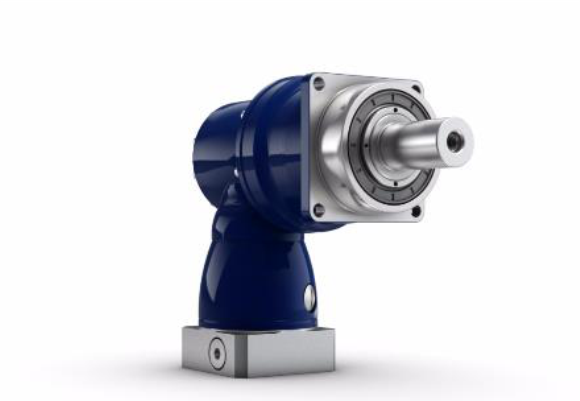

SPK⁺

a. GB type: Right angle hypoid
b. Ratio: 12 – 10,000
c. Max. Torque: up to 5700 Nm
d. Max. backlash: < 2 arcmin
e. Versions: Standard / food grade lubrication

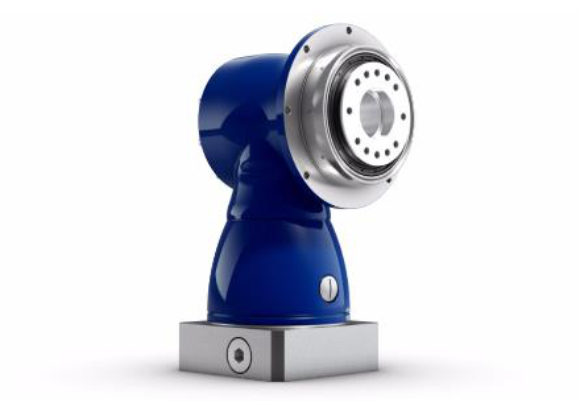

TK⁺

a. GB type: Right angle Hypoid
b. Ratio: 3 – 100
c. Max. Torque: up to 768 Nm
d. Max. backlash: < 4 arcmin
e. Versions: Standard / food grade lubrication

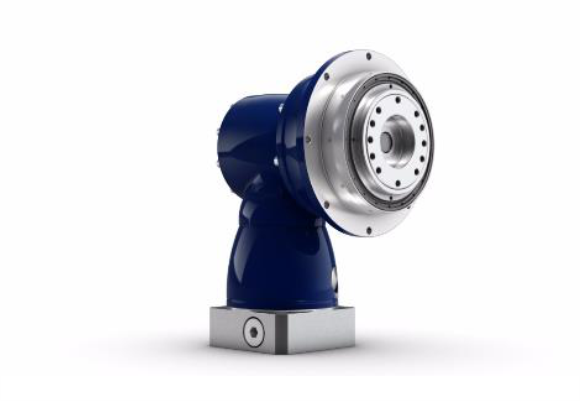

TPK⁺

f. GB type: Right angle hypoid
g. Ratio: 12 – 10,000(MF) // 66 – 5500(MA)
h. Max. Torque: up to 10,450 Nm
i. Max. backlash: < 1 arcmin
j. Versions: Standard / High torque / food grade lubrication

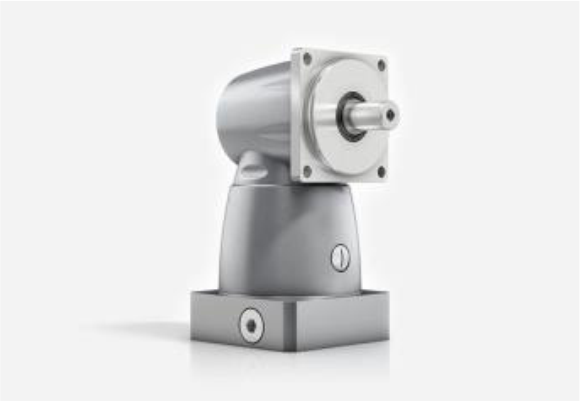

SC⁺

a. GB type: Right angle Bevel
b. Ratio: 1 & 2
c. Max. Torque: Up to 378 Nm
d. Max. backlash: < 4 arcmin
e. Versions: Standard / food grade lubrication

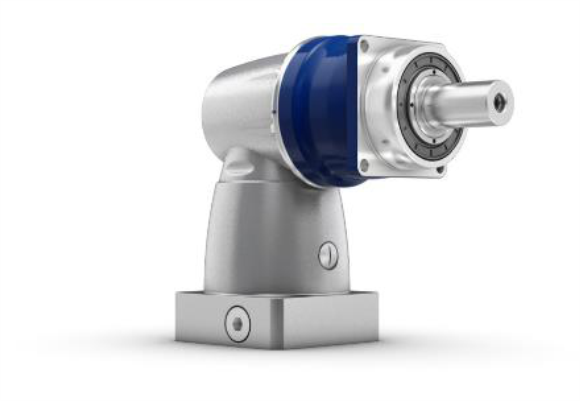

SPC⁺

a. GB type: Right angle bevel
b. Ratio: 4 – 20
c. Max. Torque: up to 1936 Nm
d. Max. backlash: < 2 arcmin
e. Versions: Standard / Food grade lubrication / corrosion resistance

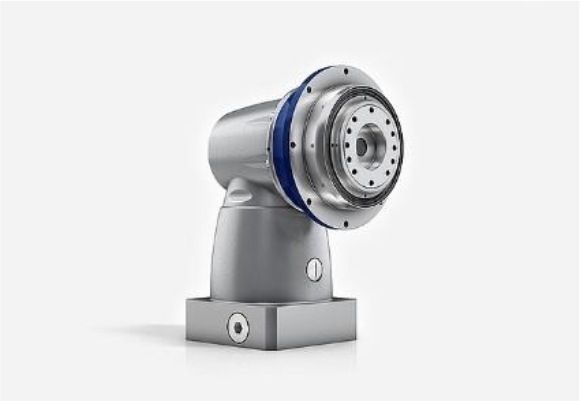

TPC⁺

a. GB type: Right angle Bevel
b. Ratio: 4 – 20
c. Max. Torque: up to 2560 Nm
d. Max. backlash: 2 arcmin
e. Versions: Standard

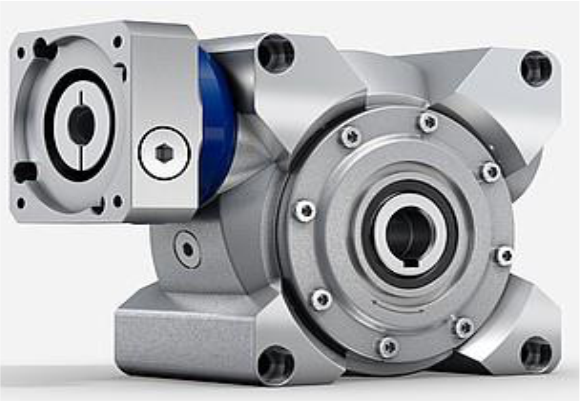

VH⁺

a. GB type: Worm gearhead
b. Ratio: 4 – 400
c. Max. Torque: up to 1505 Nm
d. Max. backlash: < 2 arcmin
e. Versions: Standard / food grade / Corrosion resistance

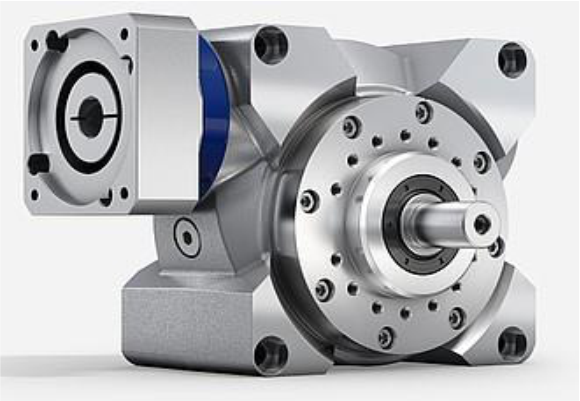

VS⁺

a. GB type: Worm gearhead
b. Ratio: 4 – 400
c. Max. Torque: up to 1505 Nm
d. Max. backlash: < 2 arcmin
e. Versions: Standard / food grade / Corrosion resistance

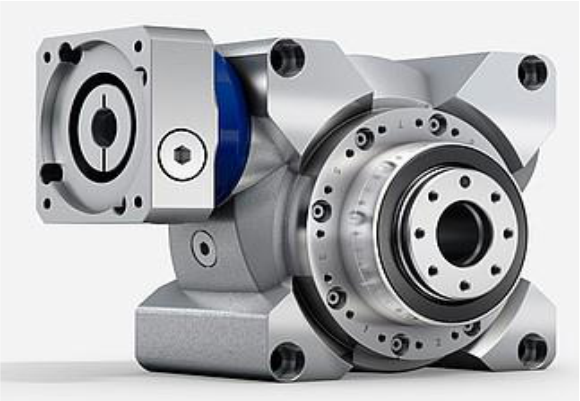

VT⁺

a. GB type: Worm gearhead
b. Ratio: 4 – 400
c. Max. Torque: up to 1505 Nm
d. Max. backlash: < 2 arcmin
e. Versions: Standard / food grade / Corrosion resistance
